About
Product Details
2024BL uses the design of the 2022 as its basic building block. However, the 2024BL has metric micrometers as well as a right angle eyepiece and a two-reticle system consisting of a dark field, bright line reticle as well as a bright field, dark line reticle. These features specifically enhance the unit's accuracy and ease of use when autocollimating. The 2024BL includes a built-in auto-reflection target on the objective lens. An autocollimation illumination unit (our model 509) is included with the instrument.
See also similar instrument 2030 (with micrometers graduated in English units) and read more about our alignment telescopes.
Eyepiece: Fully erect image; diopter scale. Right-angle eyepiece and complete projection accessories available.
Focusing knob: Drum graduated to show focusing distance in meters.
Optical micrometer:
- Built-in horizontal and vertical optical micrometers
- Displacement: ±1.2 mm, direct reading to 0.02 mm
- Accuracy: ±0.010 mm over full range
- Scale graduations are red and black to indicate direction of displacement
Specifications
BARREL DIAMETER
57.14492 mm (+0, -0.0076 mm) or 2.2498" (+0", -0.0003") - meets A.I.A. specifications
BARREL LENGTH
233 mm
LENGTH
17.75inch
RETICLE
All-purpose, double glass, dustproof; cross-pattern with single lines
TELESCOPE BARREL
Through-hardened stabilized Stainless Steel
WEIGHT, PRODUCT (APPROX.)
11.5lb, 5.2kg
Product Details
2024BL uses the design of the 2022 as its basic building block. However, the 2024BL has metric micrometers as well as a right angle eyepiece and a two-reticle system consisting of a dark field, bright line reticle as well as a bright field, dark line reticle. These features specifically enhance the unit's accuracy and ease of use when autocollimating. The 2024BL includes a built-in auto-reflection target on the objective lens. An autocollimation illumination unit (our model 509) is included with the instrument.
See also similar instrument 2030 (with micrometers graduated in English units) and read more about our alignment telescopes.
Eyepiece: Fully erect image; diopter scale. Right-angle eyepiece and complete projection accessories available.
Focusing knob: Drum graduated to show focusing distance in meters.
Optical micrometer:
- Built-in horizontal and vertical optical micrometers
- Displacement: ±1.2 mm, direct reading to 0.02 mm
- Accuracy: ±0.010 mm over full range
- Scale graduations are red and black to indicate direction of displacement
Specifications
BARREL DIAMETER
57.14492 mm (+0, -0.0076 mm) or 2.2498" (+0", -0.0003") - meets A.I.A. specifications
BARREL LENGTH
233 mm
LENGTH
17.75inch
RETICLE
All-purpose, double glass, dustproof; cross-pattern with single lines
TELESCOPE BARREL
Through-hardened stabilized Stainless Steel
WEIGHT, PRODUCT (APPROX.)
11.5lb, 5.2kg
Brunson
Brunson
SKU:BR-2024BL

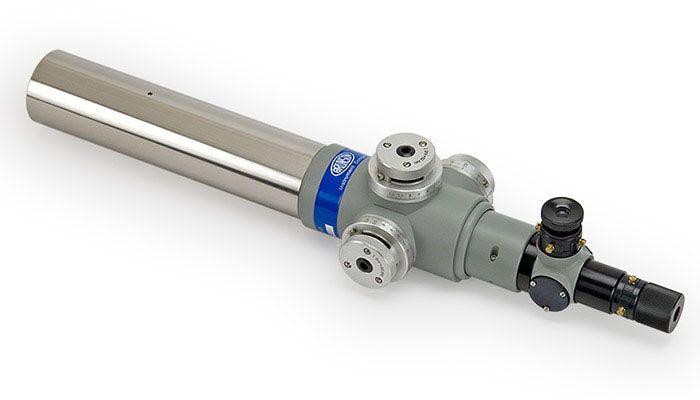

Brunson Bright Line Alignment Telescope in Metric
- Regular price
- $36,522.00
- Sale price
- $36,522.00
- Regular price
-
Shipping calculated at checkout.
Bright line & bright field reticles, metric micrometers
Bright line & bright field reticles, metric micrometers
