Product Details

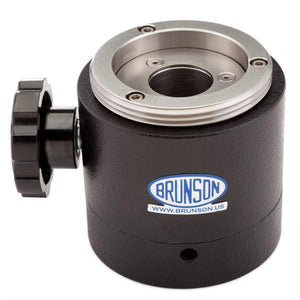

The B46632 swivel head allows you to turn your instrument to any azimuth position. It may be continuously rotated in either direction, and locked into the desired position with a large knob. This adapter is "hollow", allowing plummet shots down through the middle. It attaches to any stand or other accessory having a 3½"-8 external thread. A 3½"-8 external thread on top of this item provides the means to mount any standard instrument or other accessory.
You may also wish to look at our other stand accessories for metrology.

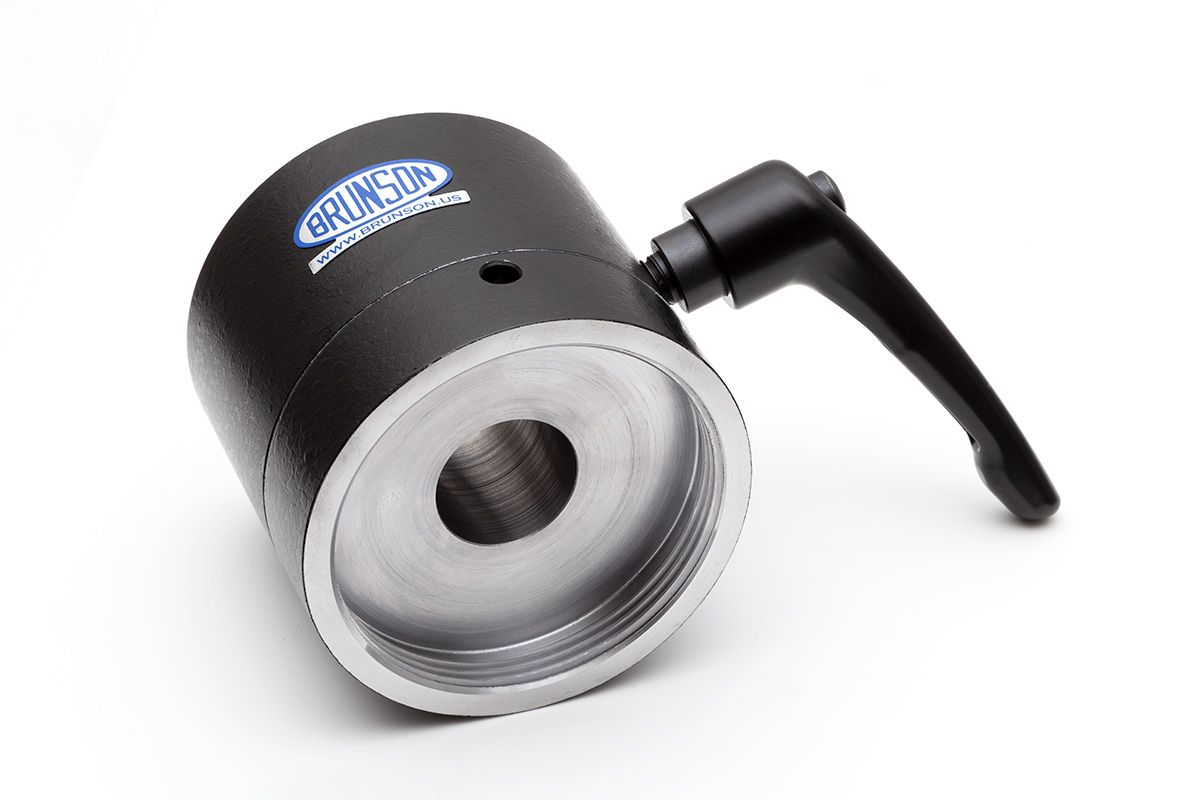

Below, the bottom view of the B46632 swivel head shows the internal 3½"-8 threads and the hollow feature which allows plummet shots.
May Be Used With
- Fits on any product having an external 3½"-8 thread
- Accepts any product having an internal 3½"-8 thread
Specifications
Effective Height
3.5" (89 mm) - the distance from the lower interface surface to the upper interface surface, i.e., the additional elevation of an instrument when the B46632 is inserted below it.
Housing Diameter
4" (102 mm)
Plummet Diameter
1-1/4" (32 mm)
Weight, Product (Approx.) lb
11
Weight, Product (Approx.) kg
4.8
Brunson
B46632
Brunson B46632 Swivel Head
