About
Our 803-CL Kit provides a reference length for use during laser tracker or scanner jobs. Use it to establish system scale when using single measuring instruments or when bundling multiple instruments together. Or use it to verify system accuracy and stability during a measurement job. Many of our customers shoot a length reference bar at the beginning, middle, and end of a job to gain confidence that nothing moved or changed during the shoot.

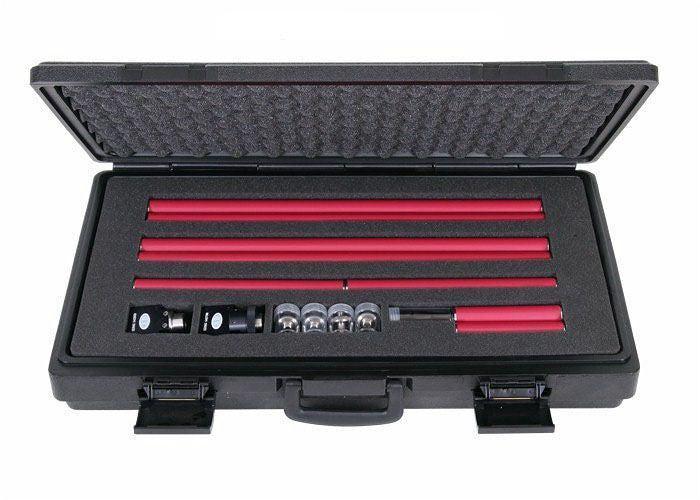

The 803-CL consists of a kit of our Invar tubing and connectors, two of our 1.5INV magnetic SMR nests (for a 1.5" SMR), and four 15199 square support feet. SMRs are not included with this kit. The Invar tubing elements are individually NIST-traceable. Invar is an excellent material for this application due to its extreme stability over a wide temperature range.
Tolerance
| Invar Tubes | 12587 Series |
| Tube Length Tolerance | ±0.0001" |
| Total Stack-up Error | ±0.0005" |

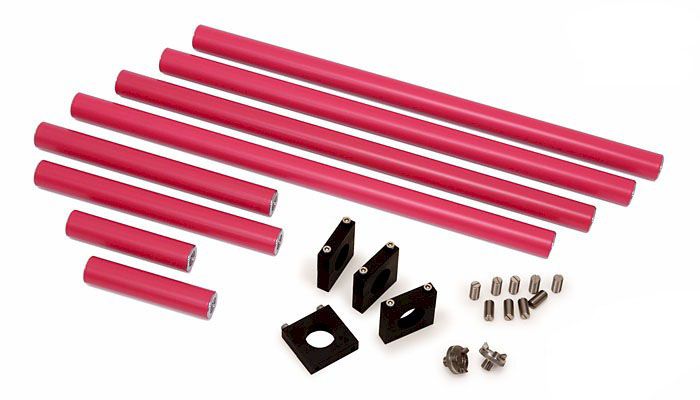

Kit Includes:
| Legend | Part Number | Description | Qty |
| A | 12587-20IN | 20" Invar Tube | 4 |
| 12587-10IN | 10" Invar Tube | 2 | |
| 12587-5IN | 5" Invar Tube | 2 | |
| B | 1.5INV-1 | SMR Holder | 2 |
| C | 15199 | Clamp-On Foot | 4 |
| D | 12406-G1 | Stainless Steel Invar System Connectors | 10 |
| no photo | 12421-G1 | Plastic Case | 1 |
| no photo | - | NIST Traceable Certification for Kit | 1 |
Our 803-CL Kit provides a reference length for use during laser tracker or scanner jobs. Use it to establish system scale when using single measuring instruments or when bundling multiple instruments together. Or use it to verify system accuracy and stability during a measurement job. Many of our customers shoot a length reference bar at the beginning, middle, and end of a job to gain confidence that nothing moved or changed during the shoot.
The 803-CL consists of a kit of our Invar tubing and connectors, two of our 1.5INV magnetic SMR nests (for a 1.5" SMR), and four 15199 square support feet. SMRs are not included with this kit. The Invar tubing elements are individually NIST-traceable. Invar is an excellent material for this application due to its extreme stability over a wide temperature range.
Tolerance
| Invar Tubes | 12587 Series |
| Tube Length Tolerance | ±0.0001" |
| Total Stack-up Error | ±0.0005" |

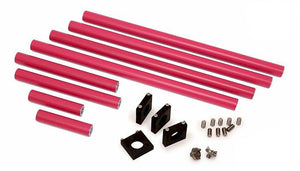

Kit Includes:
| Legend | Part Number | Description | Qty |
| A | 12587-20IN | 20" Invar Tube | 4 |
| 12587-10IN | 10" Invar Tube | 2 | |
| 12587-5IN | 5" Invar Tube | 2 | |
| B | 1.5INV-1 | SMR Holder | 2 |
| C | 15199 | Clamp-On Foot | 4 |
| D | 12406-G1 | Stainless Steel Invar System Connectors | 10 |
| no photo | 12421-G1 | Plastic Case | 1 |
| no photo | - | NIST Traceable Certification for Kit | 1 |
SKU:37-8693
Brunson 803-CL Laser Tracker Precision Extension Kit
- Regular price
- $3,326.00
- Sale price
- $3,326.00
- Regular price
-
Free Shipping on Levels, Lasers, Locators, Total Stations and Digital Theodolites
