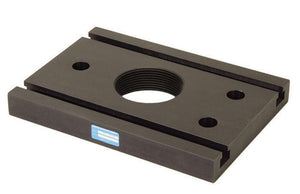

The 5201 T-slotted base plate provides the basic building block for an alignment telescope base. This base plate has two parallel T-slots which provide mounting channels for our 5192 adjustable cone assembly. The cone assemblies permit the optical axis of any alignment telescope to be precisely adjusted in a variety of ways (shift left-right or up-down, as well as pitch and yaw). The 5201 has three counterbored holes which may be used for customer-supplied mounting. The counterbored bolt hole pattern also fits the discontinued K+E style collimator test stand, model 7010. It also has a 3½"-8 threaded hole in the center for mounting directly to a stand or any accessory having a matching external thread.
May Be Used With
5192 V-block cone assembly
5182 V-block cone assembly (discontinued)
Fits onto any product having an external 3½"-8 thread
The 5201 T-slotted base plate provides the basic building block for an alignment telescope base. This base plate has two parallel T-slots which provide mounting channels for our 5192 adjustable cone assembly. The cone assemblies permit the optical axis of any alignment telescope to be precisely adjusted in a variety of ways (shift left-right or up-down, as well as pitch and yaw). The 5201 has three counterbored holes which may be used for customer-supplied mounting. The counterbored bolt hole pattern also fits the discontinued K+E style collimator test stand, model 7010. It also has a 3½"-8 threaded hole in the center for mounting directly to a stand or any accessory having a matching external thread.
May Be Used With
5192 V-block cone assembly
5182 V-block cone assembly (discontinued)
Fits onto any product having an external 3½"-8 thread
