Product Details

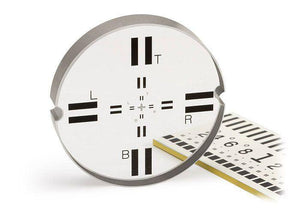

The 6125 unmounted multiple paired-line glass target may be used for many alignment applications (ex., bore alignments). The target pattern is centered within 0.0005" with respect to the outside diameter of the glass.
Specifications
Flat-to-flat shank width tolerance
4 micrometers
Glass Diameter
1.4990" (-0.0000", +0.0005")
Glass Thickness
1/4"
Line Spacings
.004", .010", .025" & .060" (0.10 mm, 0.25 mm, 0.64 mm, 1.52 mm)
Mounting Detents
1.500" center-to-center, at 180°, 0.063" radius
Parallelism
10 arcseconds
