Product Details
Fast
Scan as you go with no interruptions. The digital reality capture of the space around you happens in real-time as you move through it.
Agile
Scan over and under objects, through rooms and doorways, around corners, and up and down stairwells. Using slam spatial awareness technology, BLK2go knows where it is and where it has been in space.
On The Go
The blk2go is wireless and lightweight, designed to capture reality on the move, anywhere you go.
Seamless capture
Like a torch for visualizing three-dimensional reality, the blk2go automatically builds 3d point clouds while in motion. From the moment you begin a scan session until the moment you turn off the blk2go, all imagery and 3d data are combined.
Unbound
No tripod. Onboard data collection. Continuous scanning on rechargeable battery power.
DESIGN & PHYSICAL |
|
| Housing | Black anodized aluminium |
| Dimensions | Height: 279 mm / Diameter: 80 mm |
| Weight | 650 g (775 g including battery) |
| Transport cover | BLK2GO transportation case |
| OPERATION | |
| Stand-alone operation | One-button operation |
| Mobile device | BLK2GO Live app for iPhone (iOS 12.1 or later) including: live 2D and 3D visualization while scanning, device status and data management |
| Communication | Wireless (app connection) |
| Internal memory | 24 hours of scanning (compressed data) / 6 hours (uncompressed data) |
| Battery | Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes |
LiDAR & IMAGING |
|
| Laser class | 1 (in accordance with IEC 60825-1) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 270° (vertical) |
| Range | Min. 0.5 - up to 25 m |
| Point measurement rate | 420,000 pts/sec |
| High resolution camera | 12 Mpixel, 90° x 120°, rolling shutter |
| Panoramic vision system | 3-camera system, 4.8 Mpixel 300° x 135°, global shutter |
| SYSTEM PERFORMANCE (SLAM BASED) | |
| Relative accuracy* ** | 6-15 mm |
| Absolute position accuracy indoor * *** | 20 mm |
ENVIRONMENTAL |
|
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | +5 to +40 °C |
| Dust & humidity protection | IP54 (IEC 60529) |
DATA PROCESSING |
|
| Data transfer | Wireless and USB 3.0 |
| Desktop software | Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
Product Details
Fast
Scan as you go with no interruptions. The digital reality capture of the space around you happens in real-time as you move through it.
Agile
Scan over and under objects, through rooms and doorways, around corners, and up and down stairwells. Using slam spatial awareness technology, BLK2go knows where it is and where it has been in space.
On The Go
The blk2go is wireless and lightweight, designed to capture reality on the move, anywhere you go.
Seamless capture
Like a torch for visualizing three-dimensional reality, the blk2go automatically builds 3d point clouds while in motion. From the moment you begin a scan session until the moment you turn off the blk2go, all imagery and 3d data are combined.
Unbound
No tripod. Onboard data collection. Continuous scanning on rechargeable battery power.
DESIGN & PHYSICAL |
|
| Housing | Black anodized aluminium |
| Dimensions | Height: 279 mm / Diameter: 80 mm |
| Weight | 650 g (775 g including battery) |
| Transport cover | BLK2GO transportation case |
| OPERATION | |
| Stand-alone operation | One-button operation |
| Mobile device | BLK2GO Live app for iPhone (iOS 12.1 or later) including: live 2D and 3D visualization while scanning, device status and data management |
| Communication | Wireless (app connection) |
| Internal memory | 24 hours of scanning (compressed data) / 6 hours (uncompressed data) |
| Battery | Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes |
LiDAR & IMAGING |
|
| Laser class | 1 (in accordance with IEC 60825-1) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 270° (vertical) |
| Range | Min. 0.5 - up to 25 m |
| Point measurement rate | 420,000 pts/sec |
| High resolution camera | 12 Mpixel, 90° x 120°, rolling shutter |
| Panoramic vision system | 3-camera system, 4.8 Mpixel 300° x 135°, global shutter |
| SYSTEM PERFORMANCE (SLAM BASED) | |
| Relative accuracy* ** | 6-15 mm |
| Absolute position accuracy indoor * *** | 20 mm |
ENVIRONMENTAL |
|
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | +5 to +40 °C |
| Dust & humidity protection | IP54 (IEC 60529) |
DATA PROCESSING |
|
| Data transfer | Wireless and USB 3.0 |
| Desktop software | Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
Leica Geosystems
Leica Geosystems
SKU:LE-875578

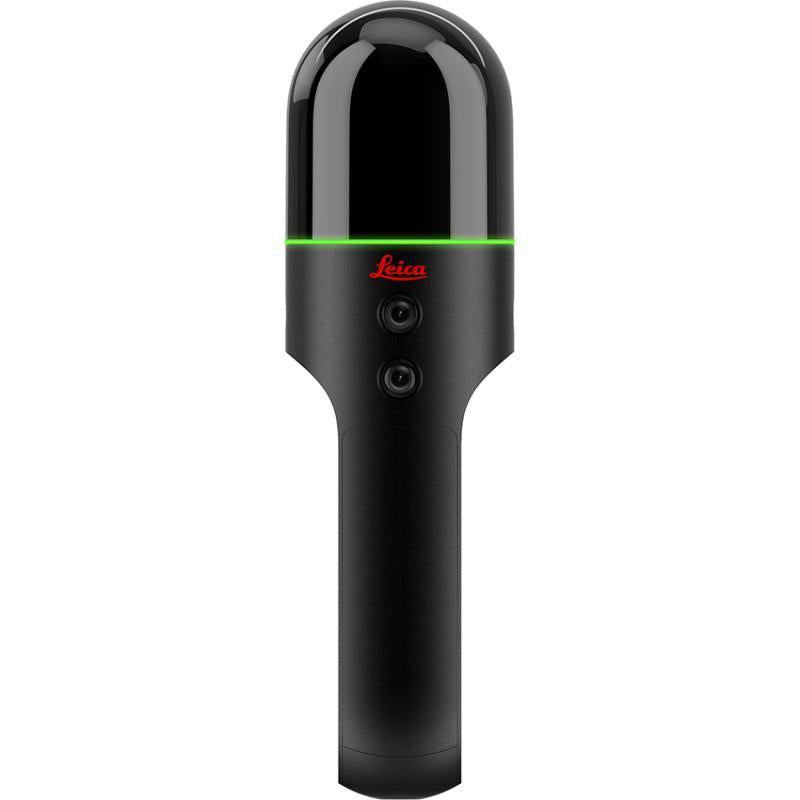

Leica BLK2GO Handheld Imaging Laser Scanner
Shipping calculated at checkout.
The BLK2go handheld imaging laser scanner recreates spaces in 3d as you move. It captures images and dimensionally accurate poin...
Read more
The BLK2go handheld imaging laser scanner recreates spaces in 3d as you move. It captures images and dimensionally accurate point clouds in real-time and uses slam technology to record your trajectory through space.
