The 803-MC Invar Kit extends the range of optical tooling scales for precise measurement of larger or hard-to-reach areas. It works with calibration scales like the 6000-CM to support accurate 3D measurement systems. Its low thermal expansion minimizes length changes from handling or temperature, ensuring reliable measurements even when equipment is in operation.



The 803-MC Invar Kit features precision metric Invar tubing with a protective polyvinyl coating for durability and easy cleaning. Tubes are color-coded yellow and manufactured to a tight length tolerance of ±0.003 mm. Carefully selected components ensure the total stack length stays within specified error limits when assembled end-to-end. Lengths range from 25 mm to 2800 mm in 125 mm increments, with ends designed for accurate measurement and repeatable contact on machine surfaces.

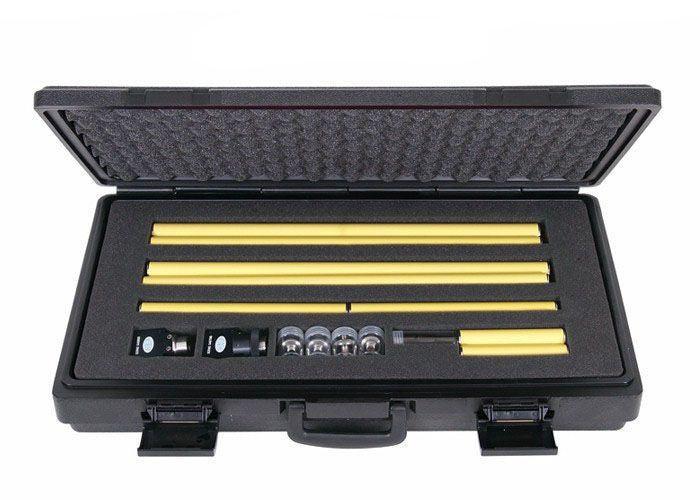

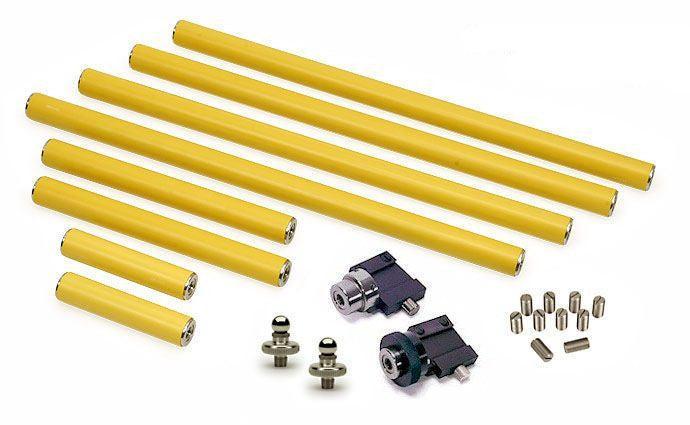

803-MC Invar Kit Components

Legend	Part Number	Description	Qty
A	12587-500MM	500 mm Invar Tube	4
	12587-250MM	250 mm Invar Tube	2
	12587-125MM	125 mm Invar Tube	2
B	12410-G1	Tooling Ball Tip	2
C	8665-G3	Rotating Scale Holder	1
D	8665-G1	Fixed Scale Holder	1
E	12406-G1	Stainless Steel Invar System Connectors	10
no photo	12421-G1	Plastic Case	1
no photo	-	NIST Traceable Certification for Kit	1





May Be Used With

Any of our optical tooling or calibration scales except for the 6040 or 6100
