About
Product Details

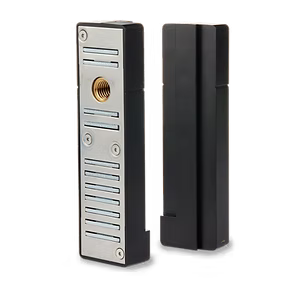

The Spectra Precision® CR600 Laser Machine Display Receiver is ideal for contractors doing both site prep and general construction. The CR600 can be either rod or machine mounted, making it ideal for a wide range of applications. Using the magnetic mount, the CR600 receiver is easily moved between backhoes, small excavators, box blades or skid steer loaders. With such a high degree of flexibility, the CR600 needs to be tough enough for any job.
Features
Specifications
Housing
Heavy-Duty metal (die-cast magnesium) Capable of 10-foot drop on concrete
LCD Channels
15 linear display segments
Offset Decals
English 0.01 ft. increments, Imperial in increments, Metric increments
Capture Height
4.5 inches
Acceptance Angle
270°
LCD Readout
Front, regardless of the receiver's orientation to the laser beam.
On-Grade Sensitivity
Ultra-Fine: 0.004 inch, Super-fine: 1/32-inch

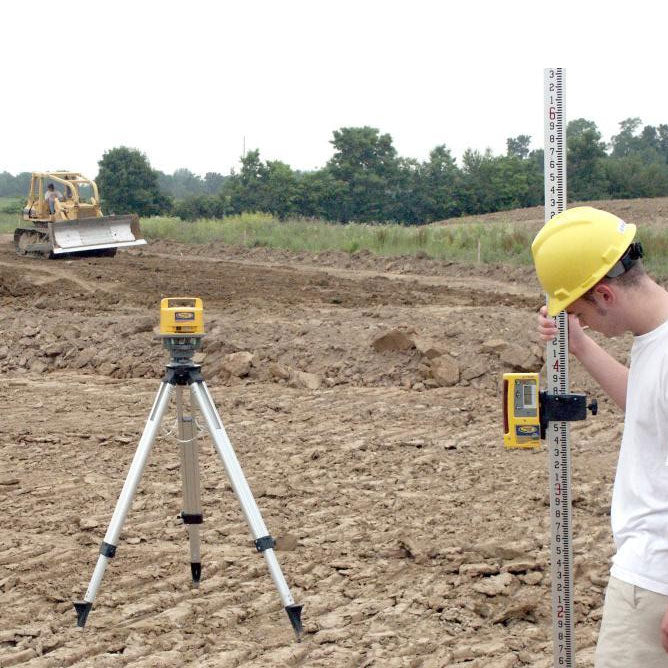

On-Grade Sensitivity (Rod-Mounted/Hand-Held Mode)
Fine: 1/16-inch, Medium: 1/8-inch, Coarse: 1/4-inch

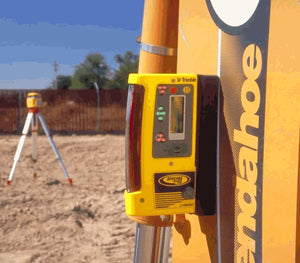

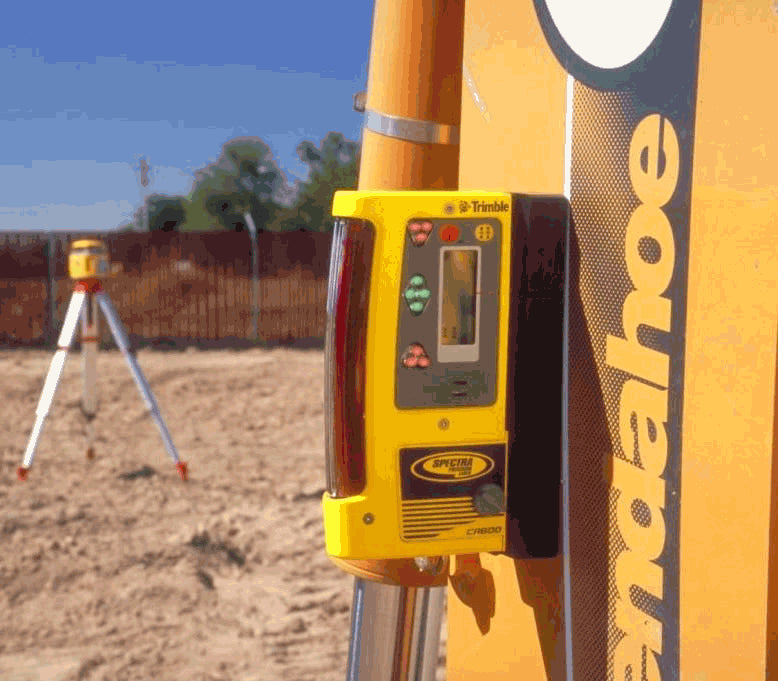

On-Grade Sensitivity (Machine-Mount Mode)
Fine: 3/8-inch, Coarse: 1-inch
Power Source
(3) each AA batteries (1.5 volt)
Battery Life
Alkaline < 100 hours @ 68° Farenheit
Battery Indicator
LCD battery symbol
Automatic Shut-off
30-minutes after last laser detection or push button actuation
Spectral Sensitivity
Operates with red visible and infrared lasers with wavelength between 610 and 900 nm
Marking Notch
2-inches below top of the receiver
Audio Function
Soft-Loud-Off
Operating Temperature
-4°F to +122° F
Storage Temperature
-40° F to +158° F
Dimensions
1.2 x 3.6 x 7.0 inch
Spectra Precision
Spectra Precision
SKU:SP-CR600

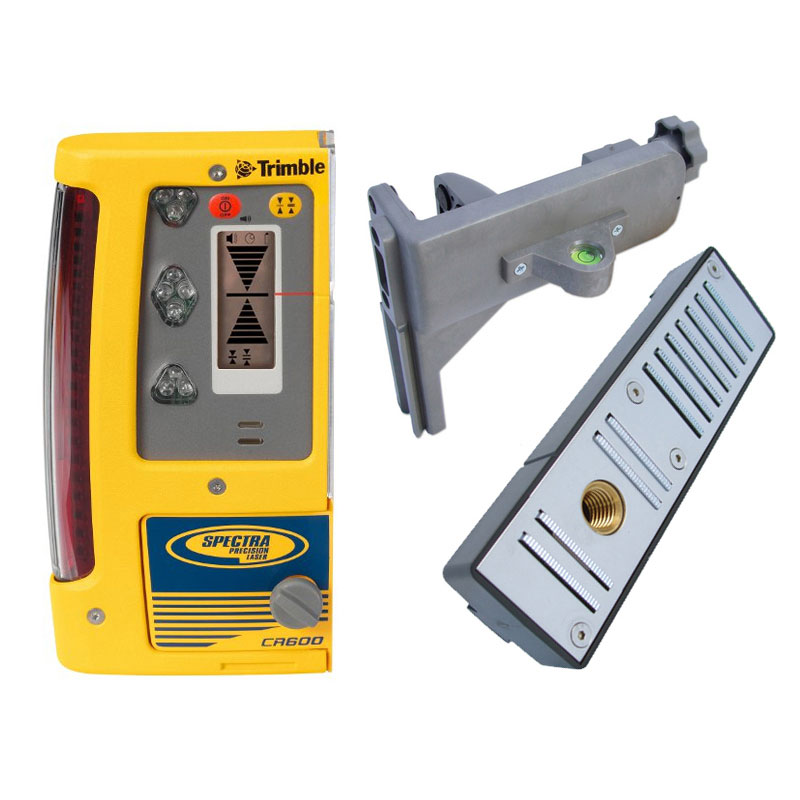

Spectra Precision Laser CR600 Machine or Rod Mounted Laser Receiver
With Magnetic and Rod Mounts
With Magnetic and Rod Mounts
- Regular price
- $666.00
- Sale price
- $666.00
- Regular price
-
$740.00
Shipping calculated at checkout.
