Product Details

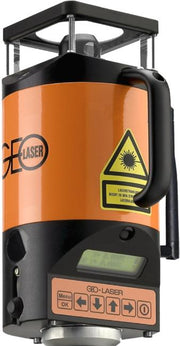

The PL-95L is an all-round laser for horizontal and vertical use capable of electronic self-leveling over three axes. Equipped with a beam split prism in the rotor head, it can also be used as a square or plumb laser. It emits a stationary or rotating laser beam, which turns into a light plane.
Features
-
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Special laser beam quality
Diode laser with visible laser beam, high-powered lens, high life expectancy and low power consumption. -
Robust metal housing
Plastic-coated, swept and filled with nitrogen, 100 % watertight. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. -
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head. -
Automatic fixing of the laser light plane
By pressing a button automatic search and fixing of the laser light plane of the Y axis. The function is as simple as it is ingenious: The rotating laser beam is received by the locking receiver FE-53 and then automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy to +/- 0.5 mm/100 m. -
Automatic fixing of the plumb beam
As soon as the laser beam hits the locking receiver FE-61, it is automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy up to ± 1 mm/100 m. Operation is possible horizontal, vertical, in alignment, with every inclination and even on swaying platforms. -
Checking and adjustment
Simple, fast and accurate! In conjunction with the LE-71, the automatic adjustment of the horizontal light plane is comfortably possible. This offers more security and increases accuracy.
Applications
AUTOMOBILE INDUSTRY & INDUSTRIAL APPLICATIONS
Levelling, aligning, and measuring tasks must be completed quickly and accurately to ensure efficient performance in aviation, shipbuilding, railcar construction, and machine manufacturing.
Levelling, aligning, and measuring tasks must be completed quickly and accurately to ensure efficient performance in aviation, shipbuilding, railcar construction, and machine manufacturing.
ROLL ALIGNMENT
Many industrial applications require precise roll alignment in both height and direction for optimal equipment setup and operation.
Many industrial applications require precise roll alignment in both height and direction for optimal equipment setup and operation.
SHELF CONSTRUCTION
High-rack shelf construction requires exact vertical orientation and alignment—tasks where GEO lasers excel.
High-rack shelf construction requires exact vertical orientation and alignment—tasks where GEO lasers excel.
TRACK SURVEYING
From railway tracks to crane rails and positioning systems, track surveying requires direction, height, and distance to align within tight tolerances.
From railway tracks to crane rails and positioning systems, track surveying requires direction, height, and distance to align within tight tolerances.
Specifications
Laser class
2, < 1 mW
Laser
Diode visible red 635 nm
Laser range
from 0,5 m up to 100 m, Ø 200 m
Beam diameter at laser
at laser 5 mm
Self-levelling range
± 5 %
Permissible deviation
± 0,025 mm + ± 0,024mm/m
Direction setting
± 5 %
Operating time
up to 28 hours
External power supply
11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out
yes
Waterproof
to 3.5 m
Temperature range
0° C to + 40° C
Weight
3,4 kg
Adjustment
possible in the field without having to open the device
Locking automatic plumb beam
up to 75 m with receiver FE-61
