About

Product Details

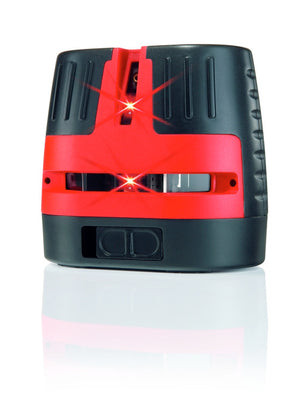

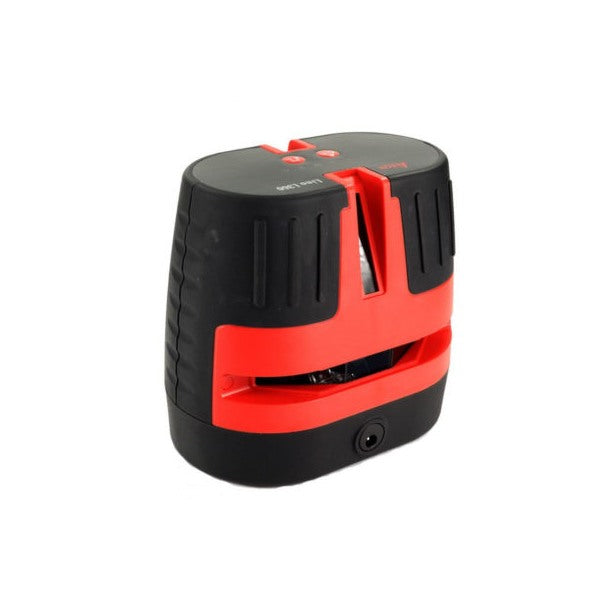

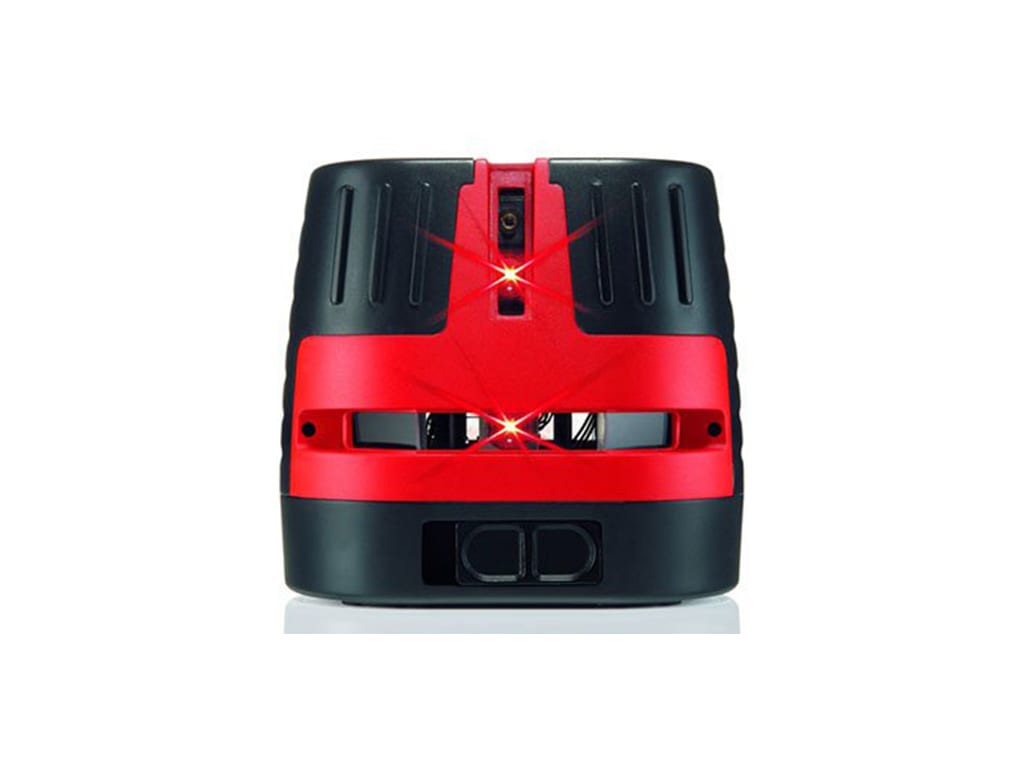

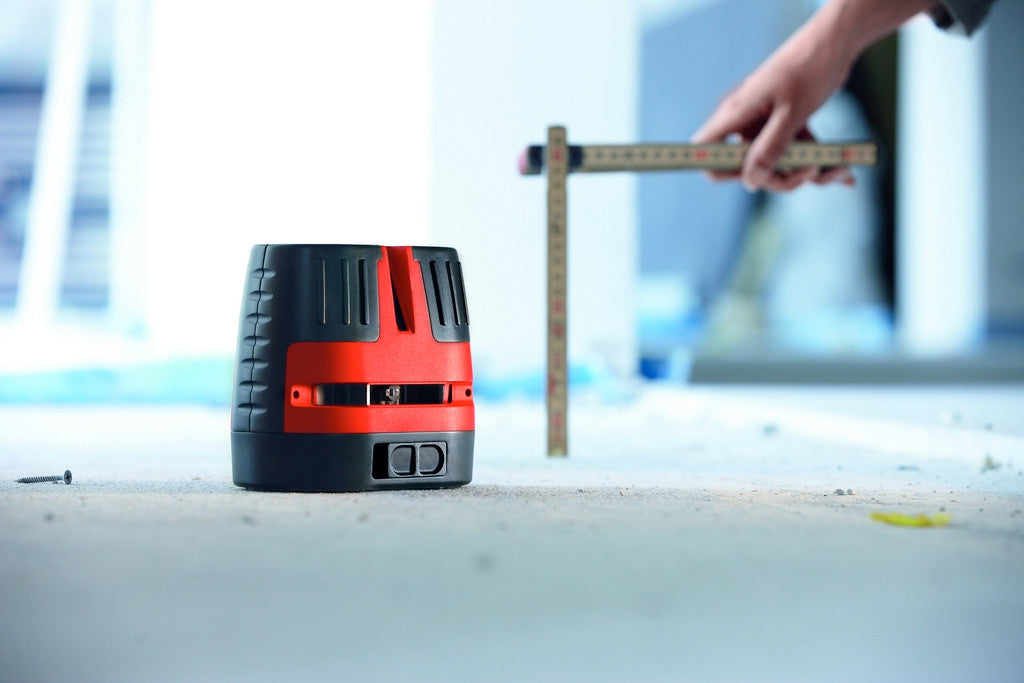

The Leica Lino L360 is a professional 360° laser level designed for fast, accurate layout work on job sites. It projects a full horizontal line and 180° vertical line with extended visibility thanks to Power Range Technology™.



The unit self-levels automatically and shuts off when out of range. Built tough with IP65 dust and water protection, it runs on a rechargeable battery. Includes target plate, tripod adapter, wall bracket, charger, and carrying case. Backed by a 3-year limited warranty.



Included:

  • Target plate
  • Mini tripod adapter & wall bracket
  • Internal rechargeable battery with charger
  • Case



Features
  • The Leica L360 is a cross-line laser level with a 360° horizontal fan angle and a 180° vertical fan angle.

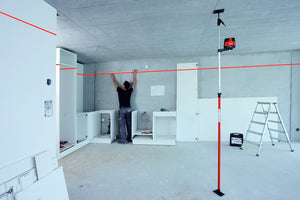

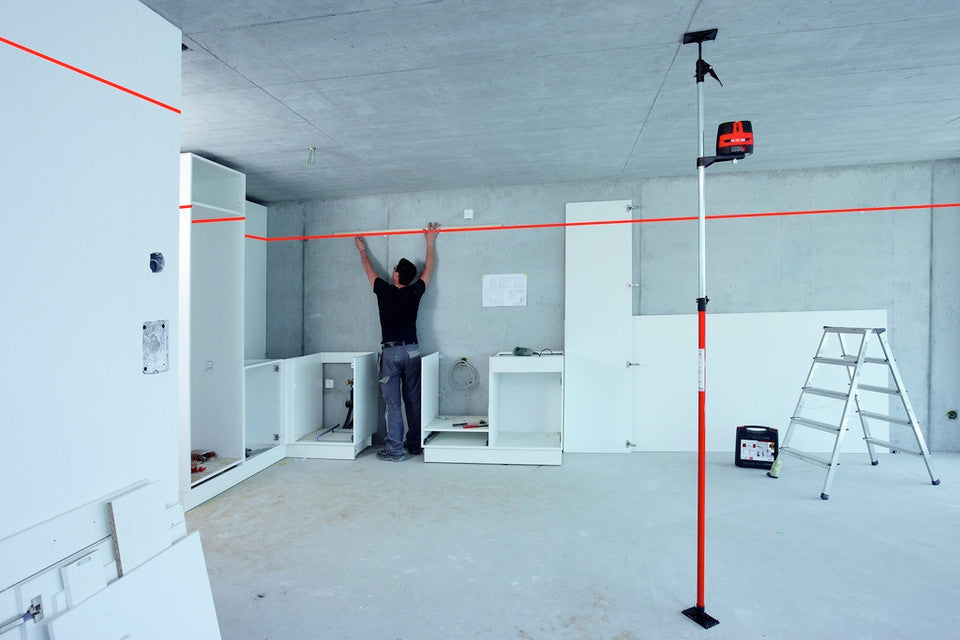

  • Like a rotating laser, the L360 projects a horizontal line 360° around the tool. Unlike a rotating laser, the beam is bright and constant when used indoors within a 50’ radius, so you can see it with the naked eye.
  • The L360 vertical line projects 180° above and to the front and back of the tool. Use the horizontal and vertical lines together to produce a perfect 90è_ cross line, or toggle between vertical only and horizontal only depending on the application.
  • The L360 self leveling pendulum lets you know your line is out of level by blinking. Once level, the line goes solid. Lock the pendulum to set out angled lines and to protect the mechanism when you aren't using it.
Specifications
Range Up to 50 ft depending on lighting conditions
Range with detector > 100 ft
Levelling accuracy at 16 ft ± 1/16"
Self-levelling range 3.5° ± 0.5°
Accuracy of horizontal line at 16 ft ± 1/16"
Vertical accuracy at 10 ft line length ± 1/32"
Beam Divergence 360°
Number of laser lines 2 Lines
Beam direction Vertical, Horizontal
Laser type 635 nm, laser class II
Batteries NiMH battery pack (rechargeable)
Protection class splash water / dust proof IP65 jet water protected / dust proof
Operating temperature 14°F to 104°F
Storage temperature -13°F to 158°F
Dimensions (H × D × W) 5.2 × 5.7 × 3.8 in
Weight without batteries 36 oz
Tripod thread 1/4" - 20
EAN/UPC 7640110694206
