Details

The Leica iCON iCS50 is the uncompromised solution for demanding construction layout. It delivers the platform's highest accuracy and full robotic capability out of the box. Its dual-camera system provides both a panoramic overview and a high-zoom lens for complete site awareness and precise aiming. For professionals who require maximum performance and versatility from day one, the iCS50 is the definitive tool.





Efficient Setup:

The Leica iCS50 features a compact, lightweight design that one person can easily carry and operate, with automated processes ensuring fast, reliable setup. Its specially developed quick-mount release lets users snap it onto the tripod without screws, while auto-leveling guarantees correct, efficient setup. Easy repositioning is supported with auto-relocation and Leica vTarget technology, maximizing productivity and simplifying operation on the job site.



Simple Software:

The Leica iCON trades software is an easy-to-use, workflow-oriented tool designed for quickly creating accurate digital templates from simple to complex shapes. With a user-friendly, visual interface similar to standard Android apps, it supports seamless workflows from capturing 2D and 3D measurements to completing detailed CAD drawings on site. It also enables direct export of CNC-ready DXF files for efficient production.



Easy to Use:

The Leica iCS50 offers simple, efficient use with visual measurement technology that clearly displays the current situation and minimizes errors through automated workflows. It combines multiple measurement methods—including the flexible, wireless Leica vPen, laser, and area scans—for precise 2D and 3D data capture. The vPen’s unique pattern ensures reliable detection in any direction, while features like visual-based search, robust target lock, automatic photo documentation, and movement alerts ensure accurate, consistent, and user-friendly operation.

  • Layout lines for various foundation, structure and building exterior applications
  • Layout interior drywall and insulation installations
  • MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
  • Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
  • As-built measurement with all details for interior finishing, e.g. kitchen building, staircase construction, window and door installation
  • Creation of digital templates for countertops, splashbacks, etc. (including offsets, roundings and cut-outs)



Your advantages:

  • One-person operation reduces staff resources and increases productivity
  • Simplified measurement and layout process due to visual measurement technology
  • Quickly ready for use due to the ‘auto-setup’ process
  • Easy relocation with Leica vTargets
  • Leica vPole with visual-based target tracking, automatic tilt compensation and auto-height detection to layout points even faster
  • Leica vPen, the unique wireless measuring pen for creating digital templates
  • Fast and efficient data capturing with all details for interior finishing
  • Flexible use of laser technology and Leica vPole or Leica vPen
  • Easy-to-use, industry-specific Leica iCON trades software for efficient workflows, seamless data flow and clear documentation





Package Details

iCS50 vPen Templating Package iCS50 Robotic Layout Package iCS50 Robotic Layout Pro Package
  • iCS50, iCON Robotic Construction Tool
  • CTP108, Carbon Tripod, quick mount
  • CVT1, iCON vPen
  • CA101, RC10 Remote Control
  • Leica CSX8 Tablet
  • iCON trades for Templating – 1yr Subscription
  • 1yr iCS20/50 Basic CCP
  • iCS50, iCON Robotic Construction Tool
  • GST05 Wooden Tripod, telescopic
  • GAD122 Adapter for GST with 5/8"
  • GVP756, Backstraps for Carry Case
  • CRP51, Construction vPole, carbon
  • CRP10, Construction Pole Tip, cm
  • CVT2, iCON vSphere
  • iCS50, iCON Robotic Construction Tool
  • CSW2003, iCS 250m Option
  • CSW2004, iCS vPole Option
  • GST05 Wooden Tripod, telescopic
  • GAD122 Adapter for GST with 5/8"
  • GVP756, Backstraps for Carry Case
  • CRP51, Construction vPole, carbon
  • CRP10, Construction Pole Tip, cm
  • CVT2, iCON vSphere
  • Leica CSX8 Tablet
  • GHT87 Holder for CSX8
  • GHT63 Pole clamp for attaching GHT
  • iCON trades for Layout Pro – 1yr Subscription
  • 1yr iCS20/50 Basic CCP
  • GSR115, Bi-Pod for GLS/CRP
Details

The Leica iCON iCS50 is the uncompromised solution for demanding construction layout. It delivers the platform's highest accuracy and full robotic capability out of the box. Its dual-camera system provides both a panoramic overview and a high-zoom lens for complete site awareness and precise aiming. For professionals who require maximum performance and versatility from day one, the iCS50 is the definitive tool.





Efficient Setup:

The Leica iCS50 features a compact, lightweight design that one person can easily carry and operate, with automated processes ensuring fast, reliable setup. Its specially developed quick-mount release lets users snap it onto the tripod without screws, while auto-leveling guarantees correct, efficient setup. Easy repositioning is supported with auto-relocation and Leica vTarget technology, maximizing productivity and simplifying operation on the job site.



Simple Software:

The Leica iCON trades software is an easy-to-use, workflow-oriented tool designed for quickly creating accurate digital templates from simple to complex shapes. With a user-friendly, visual interface similar to standard Android apps, it supports seamless workflows from capturing 2D and 3D measurements to completing detailed CAD drawings on site. It also enables direct export of CNC-ready DXF files for efficient production.



Easy to Use:

The Leica iCS50 offers simple, efficient use with visual measurement technology that clearly displays the current situation and minimizes errors through automated workflows. It combines multiple measurement methods—including the flexible, wireless Leica vPen, laser, and area scans—for precise 2D and 3D data capture. The vPen’s unique pattern ensures reliable detection in any direction, while features like visual-based search, robust target lock, automatic photo documentation, and movement alerts ensure accurate, consistent, and user-friendly operation.

  • Layout lines for various foundation, structure and building exterior applications
  • Layout interior drywall and insulation installations
  • MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
  • Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
  • As-built measurement with all details for interior finishing, e.g. kitchen building, staircase construction, window and door installation
  • Creation of digital templates for countertops, splashbacks, etc. (including offsets, roundings and cut-outs)



Your advantages:

  • One-person operation reduces staff resources and increases productivity
  • Simplified measurement and layout process due to visual measurement technology
  • Quickly ready for use due to the ‘auto-setup’ process
  • Easy relocation with Leica vTargets
  • Leica vPole with visual-based target tracking, automatic tilt compensation and auto-height detection to layout points even faster
  • Leica vPen, the unique wireless measuring pen for creating digital templates
  • Fast and efficient data capturing with all details for interior finishing
  • Flexible use of laser technology and Leica vPole or Leica vPen
  • Easy-to-use, industry-specific Leica iCON trades software for efficient workflows, seamless data flow and clear documentation





Package Details

iCS50 vPen Templating Package iCS50 Robotic Layout Package iCS50 Robotic Layout Pro Package
  • iCS50, iCON Robotic Construction Tool
  • CTP108, Carbon Tripod, quick mount
  • CVT1, iCON vPen
  • CA101, RC10 Remote Control
  • Leica CSX8 Tablet
  • iCON trades for Templating – 1yr Subscription
  • 1yr iCS20/50 Basic CCP
  • iCS50, iCON Robotic Construction Tool
  • GST05 Wooden Tripod, telescopic
  • GAD122 Adapter for GST with 5/8"
  • GVP756, Backstraps for Carry Case
  • CRP51, Construction vPole, carbon
  • CRP10, Construction Pole Tip, cm
  • CVT2, iCON vSphere
  • iCS50, iCON Robotic Construction Tool
  • CSW2003, iCS 250m Option
  • CSW2004, iCS vPole Option
  • GST05 Wooden Tripod, telescopic
  • GAD122 Adapter for GST with 5/8"
  • GVP756, Backstraps for Carry Case
  • CRP51, Construction vPole, carbon
  • CRP10, Construction Pole Tip, cm
  • CVT2, iCON vSphere
  • Leica CSX8 Tablet
  • GHT87 Holder for CSX8
  • GHT63 Pole clamp for attaching GHT
  • iCON trades for Layout Pro – 1yr Subscription
  • 1yr iCS20/50 Basic CCP
  • GSR115, Bi-Pod for GLS/CRP
Leica Geosystems Leica Geosystems

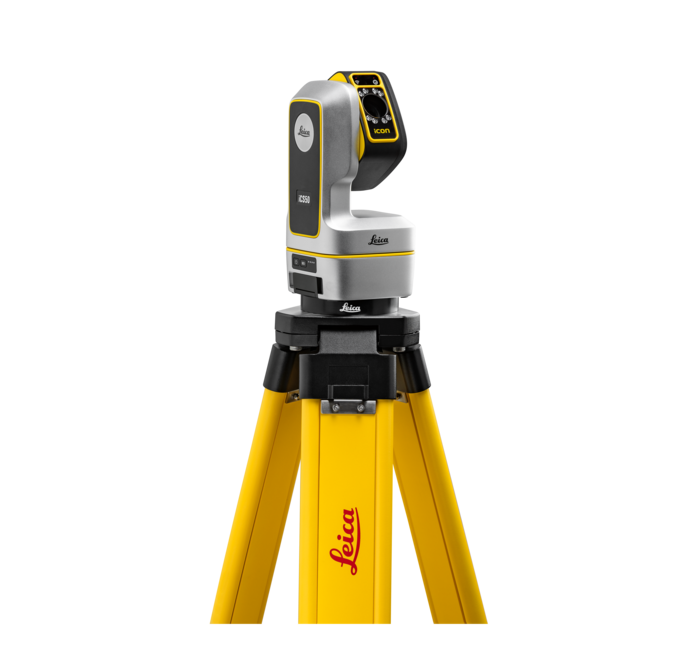

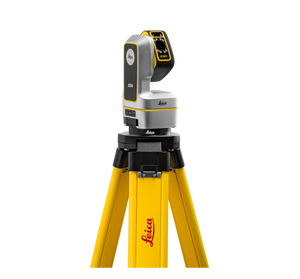

Leica iCON iCS50

$29,658.00
$29,658.00
Shipping calculated at checkout.
Package Options:
Download Product Spec Sheet
Download Leica iCON iCS50 SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.

Want more Information?

Not sure if this fits your setup? Ask us before you buy.

Request More Info
Leica iCON trades

The Ultimate Solution for Building Construction Layouts

The Leica iCON iCS50 robotic construction tool provides exceptional flexibility and efficiency. For measurements on reflective or glossy surfaces, the unique, wireless Leica vPen serves as an excellent addition to capture accurate measurement data.

Ready for Use in Just a Few Steps

The Leica iCON iCS50 is a state-of-the-art, compact robotic sensor that can be carried onto site, set up and operated by just one person. Smart features such as the 'quick-mount' tripod and 'auto-setup' process ensure that it's ready for use in only a few steps, saving you time and avoiding expensive mistakes.

Fast Layout and Aiming

The camera live stream delivers extremely sharp images. This allows you to see on the tablet what the Leica iCON iCS50 sees, meaning you can precisely select any point. Due to the unique high-speed motor, the construction sensor then locates that point very quickly, shortening layout and measurement processes.

Leica vPole - Layout More Points

The unique visual-based target tracking is very robust and ensures that the Leica iCON iCS50 always stays connected to the Leica vPole. It also automatically compensates for pole tilt and automatically detects the pole height. This allows you to layout significantly more points, including hidden points. At the same time, the Leica vPole is very light and therefore comfortable to handle.

Leica vPen - Ideal for Digital Templating

This unique wireless measuring pen is very versatile and extremely precise (± 1 mm accuracy at 10 m). You can use it to measure on any surface, including glass, by simply touching the point you want to measure. It also enables you to measure edges without having to set up target plates. The unique visual-based target tracking ensures that the Leica iCON iCS50 always stays connected to the Leica vPen.

Leica vTarget - Easy Relocation

The visual-based target detection and the automated process greatly simplify the relocation of the device. New Leica vTargets are automatically detected. This saves time, avoids errors and allows you to quickly continue your layout and measurement tasks, even after a break. It also ensures best line of sight by always placing the device close to the working area.

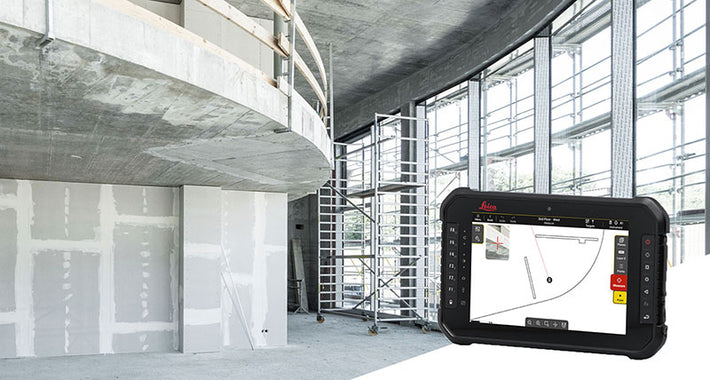

Leica iCON trades software

The robotic construction sensor Leica iCON iCS50 is fully compatible with Leica iCON trades software

High Degree of Flexibility

The Leica iCON iCS50 combines the benefits of laser technology with the advantages of Leica vPole and Leica vPen. Simply switch from one method to the other, depending on whichever supports your layout or measurement requirements best.

Error Prevention

Active and continuous monitoring of the unit's position automatically detects even the smallest movement and triggers an alarm. This avoids inaccuracies and expensive mistakes.

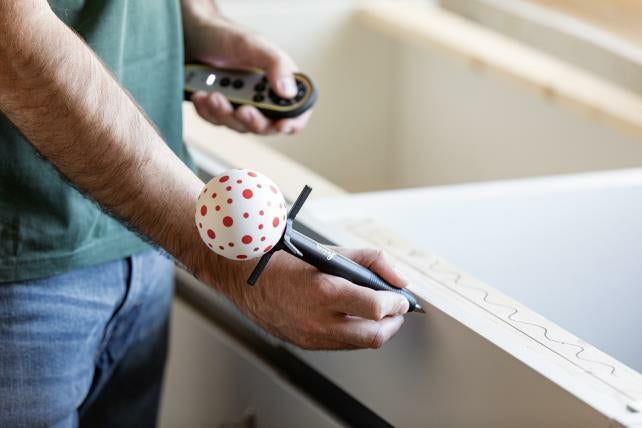

Simple Touch & Measure with Leica vPen

The Leica vPen is the first-ever remote measurement pen, designed to revolutionize how professionals record and manage measurements on job sites. This innovative tool eliminates the need for cumbersome manual measuring devices, allowing you to take accurate measurements from a distance with just a simple touch. This means you can handle more projects in less time, increasing overall productivity, without compromising accuracy. The Leica vPen's ±1mm accuracy at a distance of 10m is comparable to that of high-end traditional measurement equipment, ensuring that every measurement is as accurate as it is quick.

Automatic Positioning with Leica vTarget

By allowing the Leica iCON iCS instrument to automatically search for and lock onto control points, Leica vTargets make the entire process of establishing reference points more efficient and user-friendly. Leica vTargets also enable the Leica iCON iCS instrument to take automatic measurements, significantly enhancing the accuracy and speed of data collection. (360° search range of 25 meters and a target aiming range of 40 meters) Each Leica vTarget features a unique pattern, allowing the Leica iCON iCS to automatically identify and differentiate between targets. This unique identification system eliminates the risk of confusing targets during the measurement process, ensuring that the data collected is accurate and reliable.

Specifications

3D POINT ACCURACY
Laser (Combination of angle and distance measurement)
1.0 mm @ 10 m (0.04 in @ 33 ft)
2.5 mm @ 50 m (0.10 in @ 164 ft)
10.5 mm @ 250 m (0.41 in @ 820 ft)*
vPen
1.5 mm @ 10 m (0.06 in @ 33 ft)**
vSphere
3.0 mm @ 50 m (0.12 in @ 164 ft)**
vPole Tip
3.0 mm @ 50 m (0.12 in @ 164 ft)****
ANGULAR MEASUREMENT
Accuracy Hz and V (Standard deviation ISO 17123-3)
5" (1.54 mgon)
Working range
Horizontal (Hz): 360°, Vertical (V): 290°
DISTANCE MEASUREMENT – RANGE
Reflectorless (Kodak White, 90% reflective)
0.3 to 50 / 250 m (0.98 – 164 / 820 ft)*
Reflectorless (Kodak Grey, 18% reflective)
0.3 to 50 / 120 m (0.98 – 164 / 394 ft)*
vTarget (CVT3, CVT6)
1.2 to 40 m (3.94 – 131 ft)***
vPen
0.7 to 10 m (2.30 – 33 ft)**
vSphere
1.5 to 50 m (4.92 – 164 ft)**
DISTANCE MEASUREMENT – ACCURACY
Non-prism / Any surface
1.0 mm @ 10 m (0.04 in @ 33 ft)
Standard deviation ISO 17123-4
1.5 mm @ 50 m (0.06 in @ 164 ft)
6.0 mm @ 250 m (0.24 in @ 820 ft)*
LASER DOT SIZE
Coaxial, visible red laser (Class II)
17.2 × 27.3 mm @ 50 m (0.68 in × 1.41 in @ 164 ft)
AUTOMATIC AIMING
Auto aiming range (vTarget)
1.2 to 40 m (3.94 to 131 ft)***
CAMERA
Overview camera (diagonal)
27.6° (4.91 m @ 10 m / 16 ft @ 33 ft) / 12.33 MP
On-axis camera (diagonal)
7.5° (1.31 m @ 10 m / 4.29 ft @ 33 ft) / 12.33 MP
Fish-eye camera (circular)
~200° (circular) / 13.31 MP
Zoom
16×
GENERAL
Instrument category
iCON Construction Tool
Motorization
Motorized (robotic upgrade possible)
Direct drives
180°/s
Tilt compensation range
±3°
Interfaces
USB-C (2), WLAN
Weight
3.37 kg
ENVIRONMENTAL SPECIFICATIONS
Dust / Water / Humidity
IP54
Operating temperature
-20°C to +50°C
Charging temperature
0°C to +60°C
Storage temperature
-25°C to +70°C
POWER MANAGEMENT
Battery
Rechargeable Li-Ion
Operating time
> 8 h
Charging time
70% in 1 h, 100% in 2 h

* iCS 250 m option required.

** iCS20 requires iCS Robotic option.

*** With rough aiming with the camera. Fully autonomous detection from 2 m (6.56 ft) to 25 m (82 ft).

**** Including tilt compensation with vSphere at H3.

Laser class 2 in acc. with IEC 60825-1.
