About
DURABLE AND CAREFREE
Wide temperature range & truly protected against water, dust, and impacts. You work in all conditions, so does the tablet. Hot-swappable batteries. Communication stays open, and there is no need to close programs or to stop and save data to change batteries.
FIT FOR PURPOSE
7-inch sunlight-readable multi-touch screen. Convenient size to use graphics and imaging sensors but lightweight enough to use all day long with all sensors. Full-LTE support and one modem for all regions. Can be used worldwide
- Long-Range Bluetooth range is approx. 600m
DESIGNED FOR SURVEYORS
Efficient companion for Leica Captivate. Control everything from connecting to sensors to survey tasks and data sharing in one field software. The first generation of CS30 comes with standard Bluetooth connection and fits especially GNSS sensors and shorter-range total station jobs. Stable Windows operating system is a flexible solution for all kinds of on-site needs.
SUSTAINABLE
Certified for sustainable handling of the equipment at the end of lifecycle in several countries.
SYSTEM |
|
| Operating System | Microsoft® Windows® 10 LTSC 64bit |
| Processor |
Intel® ApolloLake N3550 1.1GHz up to 2.4GHz |
| Memory |
4 GB RAM |
| Screen |
7.0 inch |
| Hardware keys | Power button, 2 function keys |
|
Weight (Including Battery) CS30 Tablet |
760g, 67g, 30g |
|
Dimensions |
210 x 140 x 23 mm |
| Battery |
Hot-swappable |
ENVIRONMENTAL |
|
| Dust Resistance | IP6x |
| Water Resistance |
IPx6 (spray) |
| Shock Resistance | 1.5m drop |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to + 70°C |
| Military Standard (MIL-STD) | 810G |
CONNECTIVITY - PORTS |
|
| USB |
v2.0 Type-A |
| microSD | up to 256 GB |
| Power Supply | DC jack |
| RF Antenna Pass-through |
WWAN |
| Docking Connector | 35 pin |
CONNECTIVITY - WIRELESS |
|
| WLAN | 802.11 a/b/g/n/ac (2.4 & 5GHz) |
| Bluetooth® | v4.2 |
| Cellular Modem | Worldwide 3G/4G LTE |
CONNECTIVITY - RANGE |
|
| Standard Bluetooth® | ‰ˆ 100 m |
| Long-range Bluetooth® | ‰ˆ 600 m |
| INTEGRATED SUPPORTING SYSTEMS | |
| Camera | 8 MP |
| Sensors |
Accelerometer |
DURABLE AND CAREFREE
Wide temperature range & truly protected against water, dust, and impacts. You work in all conditions, so does the tablet. Hot-swappable batteries. Communication stays open, and there is no need to close programs or to stop and save data to change batteries.
FIT FOR PURPOSE
7-inch sunlight-readable multi-touch screen. Convenient size to use graphics and imaging sensors but lightweight enough to use all day long with all sensors. Full-LTE support and one modem for all regions. Can be used worldwide
- Long-Range Bluetooth range is approx. 600m
DESIGNED FOR SURVEYORS
Efficient companion for Leica Captivate. Control everything from connecting to sensors to survey tasks and data sharing in one field software. The first generation of CS30 comes with standard Bluetooth connection and fits especially GNSS sensors and shorter-range total station jobs. Stable Windows operating system is a flexible solution for all kinds of on-site needs.
SUSTAINABLE
Certified for sustainable handling of the equipment at the end of lifecycle in several countries.
SYSTEM |
|
| Operating System | Microsoft® Windows® 10 LTSC 64bit |
| Processor |
Intel® ApolloLake N3550 1.1GHz up to 2.4GHz |
| Memory |
4 GB RAM |
| Screen |
7.0 inch |
| Hardware keys | Power button, 2 function keys |
|
Weight (Including Battery) CS30 Tablet |
760g, 67g, 30g |
|
Dimensions |
210 x 140 x 23 mm |
| Battery |
Hot-swappable |
ENVIRONMENTAL |
|
| Dust Resistance | IP6x |
| Water Resistance |
IPx6 (spray) |
| Shock Resistance | 1.5m drop |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to + 70°C |
| Military Standard (MIL-STD) | 810G |
CONNECTIVITY - PORTS |
|
| USB |
v2.0 Type-A |
| microSD | up to 256 GB |
| Power Supply | DC jack |
| RF Antenna Pass-through |
WWAN |
| Docking Connector | 35 pin |
CONNECTIVITY - WIRELESS |
|
| WLAN | 802.11 a/b/g/n/ac (2.4 & 5GHz) |
| Bluetooth® | v4.2 |
| Cellular Modem | Worldwide 3G/4G LTE |
CONNECTIVITY - RANGE |
|
| Standard Bluetooth® | ‰ˆ 100 m |
| Long-range Bluetooth® | ‰ˆ 600 m |
| INTEGRATED SUPPORTING SYSTEMS | |
| Camera | 8 MP |
| Sensors |
Accelerometer |
SKU:LE-CS30

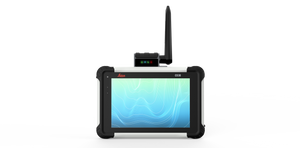

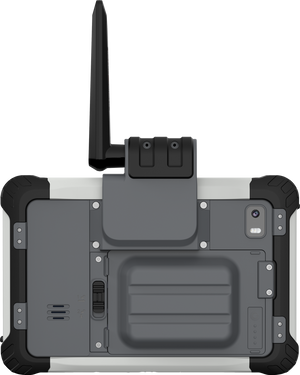

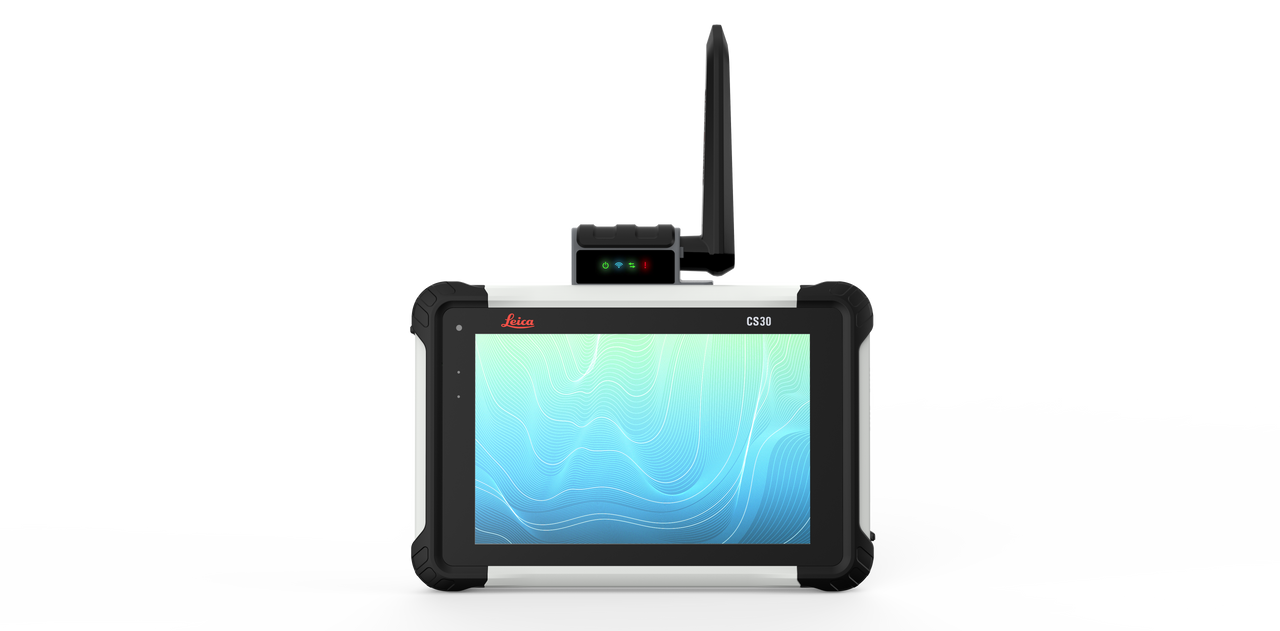

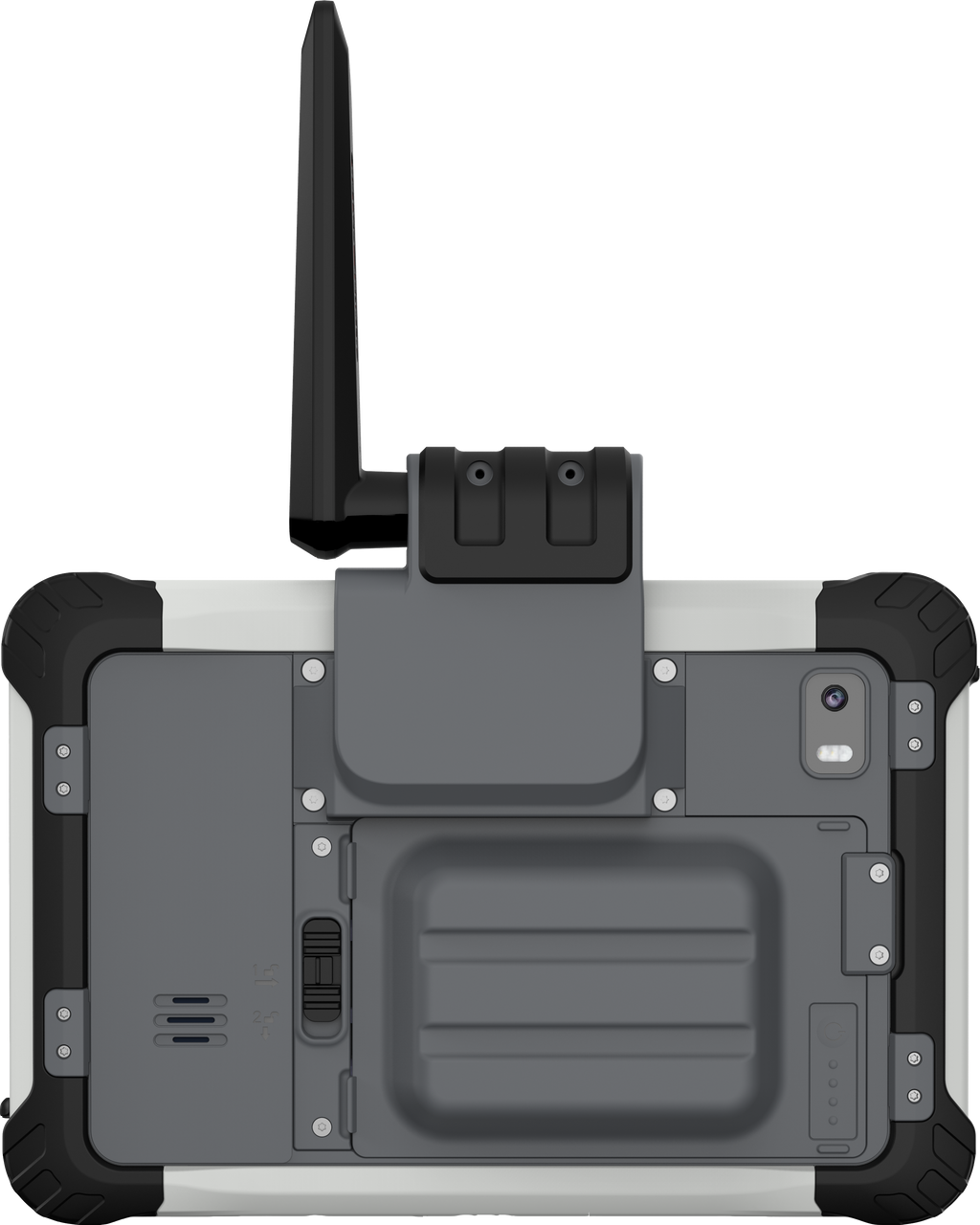

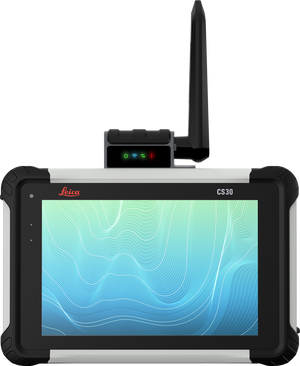

Leica CS30 LRBT Data Collector
