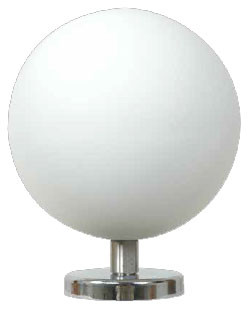

Lightweight Aluminum Laser Scanning Target Solution (6703-10)

6703-10 - 100 mm OD lightweight aluminum sphere Precision design.

allowable deviation < 1 mm Female 1/4 x 20 threaded mounting Center height is 49 mm for bottom flat.

• 100 mm OD aluminum sphere
• Precise design, allowable deviation < 1 mm
• Female 1/4 x 20 threaded mounting
• Painted non-glare white
• Center height is 49 mm for bottom flat (#6703-001)
• Grade 8 magnet — strongest ceramic material available
• 2.03 inch OD steel cup
• 1/4 x 20 stainless steel stud
• Chrome-plated steel cup magnet offers 40 pounds of pull
• Weighs 0.80 lb (0.36 kg)

_________________________________________________________________________

6703-Series Adapter Diagram	Product Bulletin
