About
Product Details
Your Disto X3 comes complete with:
- Holster
- Lanyard / Hand Loop
- 2 AA Batteries
- Quick Start Function Card
- Leica Protect Service Card

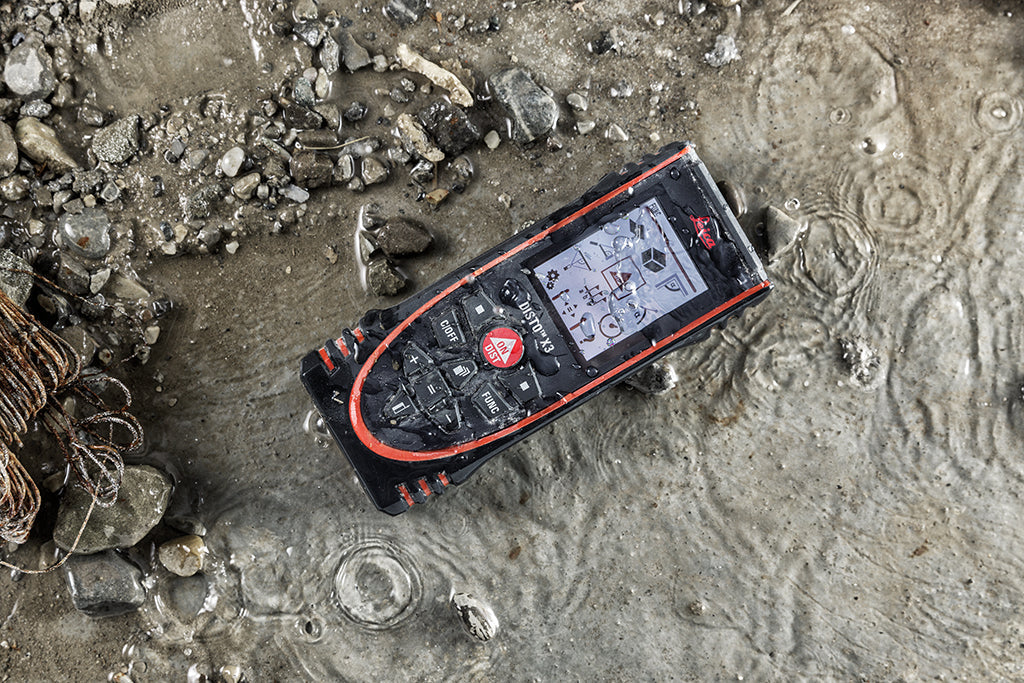

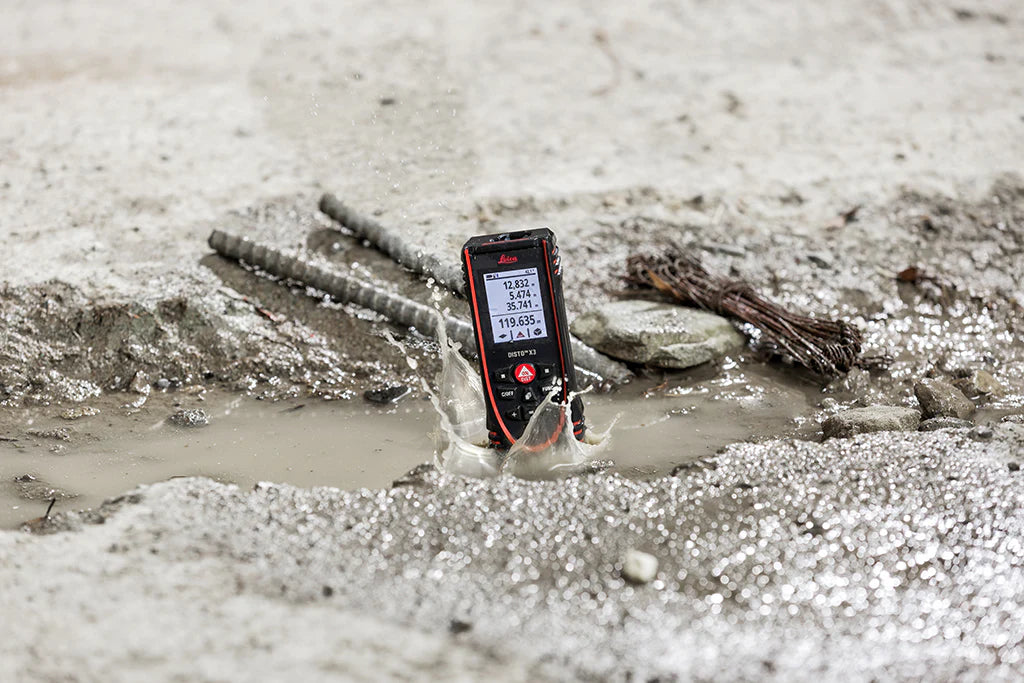

Rugged design for tough conditions

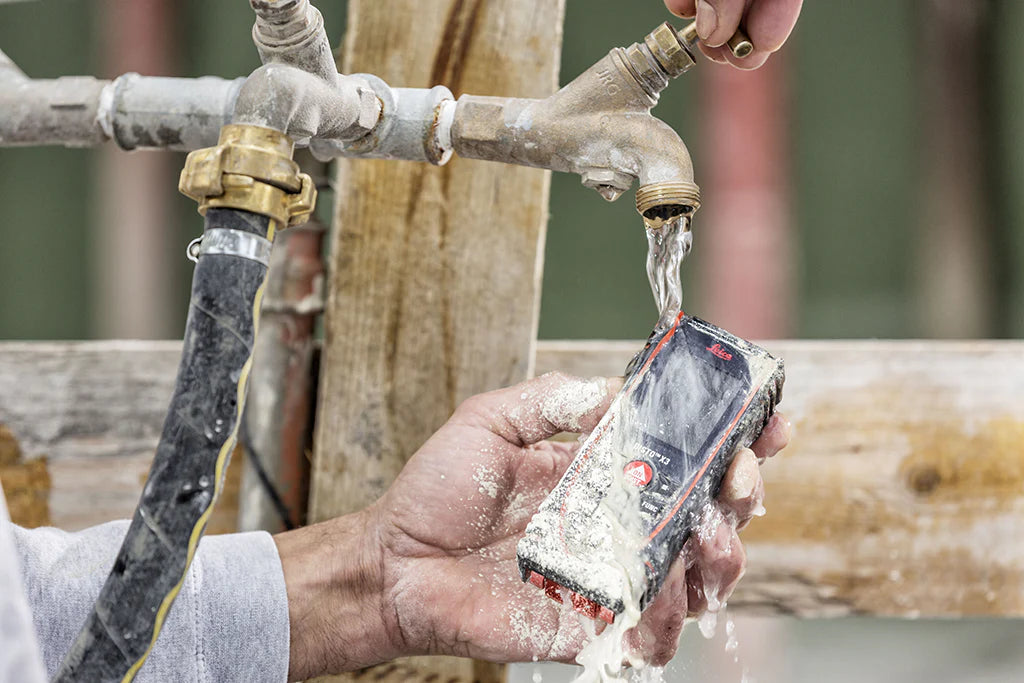

The Leica Disto X3 casing and keypad are protected against dust and water up to IP 65 standards. This means that the X3 can be cleaned under running water.
Special bracing made from fiberglass-reinforced plastic strengthens the device inside and solid rubber components protect the sensitive measuring elements against drop-damage.
Visual stake-out - A know function re-invented
Speed up the stake-out workflow significantly with measurements continuously updating on the display to indicate exactly where you are. Easily detect stake-out position with the dynamic marks on the display.

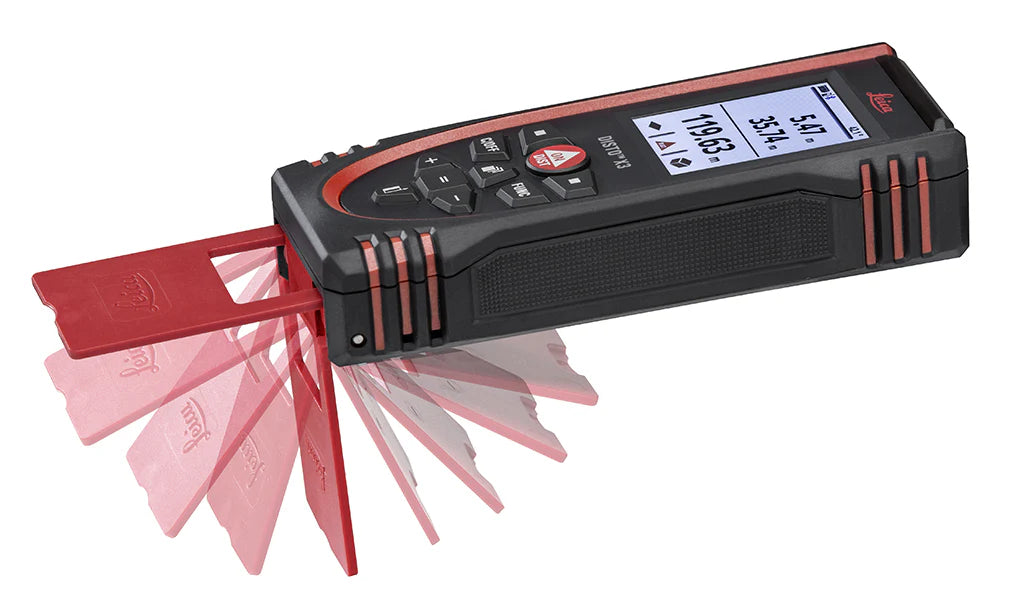

Extra Long Multi-Function End Piece
The Disto X3 has an 80% longer end-piece - offering additional measurement possibilities and reducing restrictions for window and blind measurements. The instrument detects the end-piece automatically and adjusts the zero point accordingly.
Features
Specifications
Typ. distance measuring accuracy (ISO 16331-1 certified)
± 1.0 mm
Range (ISO 16331-1 certified)
0.05 up to 150 m
Measuring units
m, ft, in
X-Range Power Technology
Yes
Tilt sensor
Yes
Tilt sensor accuracy to the housing
± 0.2°
Smart Base measuring range Horizontal
360° for use with Leica DST 360
Smart Base measuring range Vertical
-64° to > 90° for use with Leica DST 360
Typ. tolerance of P2P function for use with Leica DST 360
± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range
5° for use with Leica DST 360
Memory of last measurement
20
DISTO™ transfer for Windows
Yes
DISTO™ Plan app for iOS and Android
Yes, includes in app purchases
Smart Room function support
Yes
General data interface
Bluetooth® Smart
Data interface for 3D point data
Bluetooth® Smart
Measurements per set of batteries
up to 4'000 (reduced when used with Bluetooth®)
Service life of batteries
up to 8h (reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection
Yes
Batteries
2x AA Alkaline
Protection class
IP 65
2m drop tested
Yes
Dimensions
132 x 56 x 29 mm
Weight with batteries
184g
MPC
850833

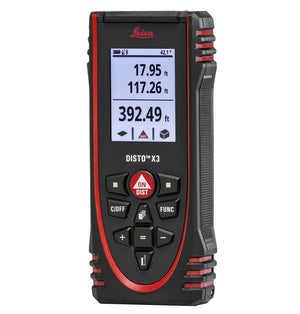

Leica Disto X3 Laser Distance Meter
- Regular price
- $400.00
- Sale price
- $400.00
- Regular price
-
Shipping calculated at checkout.
Free Shipping
Download Product Spec Sheet
Free Shipping!
This item qualifies for free shipping within the continental U.S.
