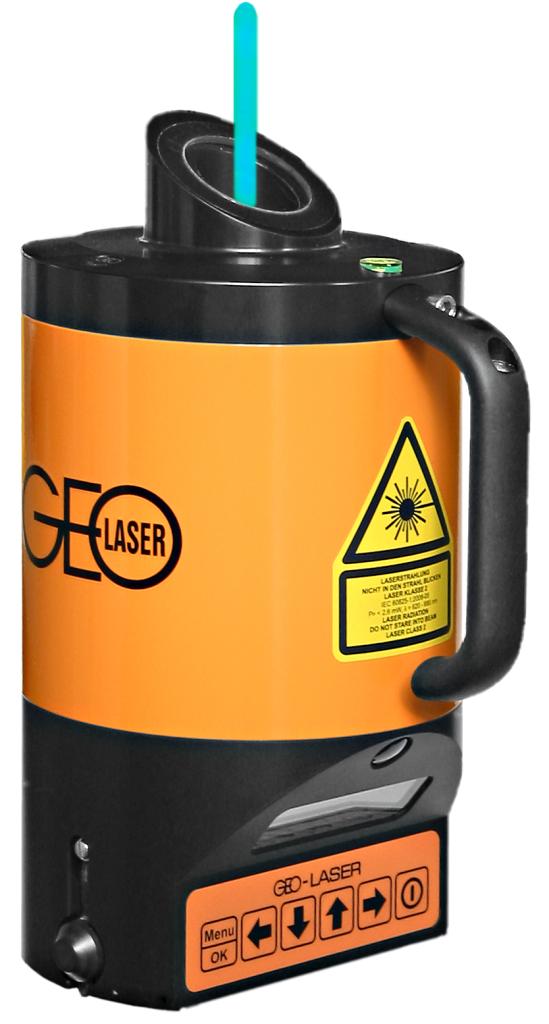

GEO Plumb Laser LL-91L

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
GEO Laser
Contact Us for Rental & Purchase
SKU:
38-0976-K

 Product Description

The automatic plumb laser LL-91L with green laser beam is a laser for plumbing up in laser class 3R, capable of electronic self-levelling over two axes. OIur new green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. This is because the human eye is four times more receptive to green light than to red. In addition, green light does not get overpowered so much by the red spectrum of the sunlight.

Every time where there is the need to project a point exactly vertically up, this laser is the right choice.

This laser is also available with a higher precision of ± 2,5 mm/100 m and alternatively as LL-90L in laser class 2.

  • Performance features
    Laser class 3R, laser power < 5 mW, high-power version. Laser power adjustable in five steps.

  • Fully automatic
    Automatic leveling and cut-out in case of low battery or jerky movement.

  • Automatic function can be switched off
    Therefore inclination adjustment by points of reference is possible.

  • Illuminated, clearly legible LCD display
    Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu.

  • Robust metal housing
    100 % watertight, Plastic-coated, swept and filled with nitrogen.

  • Special laser beam quality
    Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption.

  • Lithium ion rechargeable battery
    Operation time up to 34 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery.

  • Increased safety
    Control indicators with blinking warning system for levelling, operating status and low battery.

  • Uncompromisingly easy
    All you have to do is switch on/off. The rest is done by the LL-91 automatically.

  • Checking and adjustment
    Easily possible at the building site as well. The device does not have to be opened for adjustment.



Includes

LL-91L AUTOMATIC PLUMB-UP LASER W/GREEN BEAM

NE-80 CHARGER

5/8" HEXAGON HEAD CAP SCREW W/NUT & WASHER

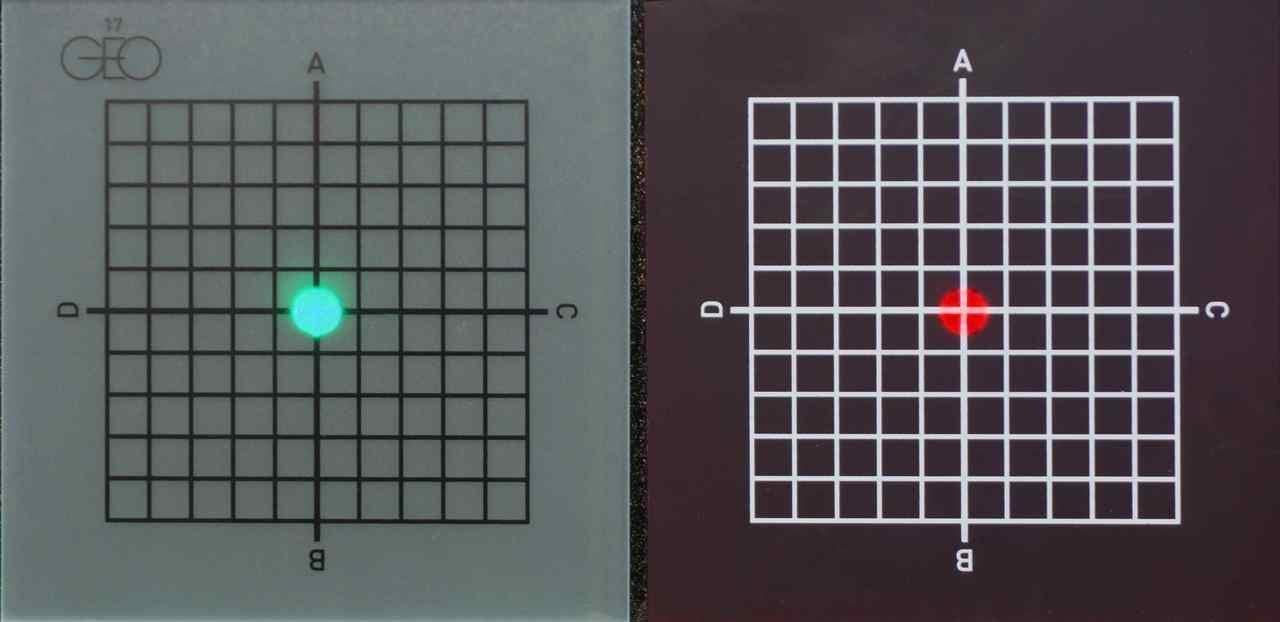

LL-ZT GREEN TARGET W/COORDINATES GRID

TRANSPORT CASE



Specifications

Laser class 3R, < 5 mW
Laser diode laser, visible green, 520 nm
Laser range up to 500 m
Beam diameter at laser at laser 13 mm
Self-levelling range ± 5 %
Permissible deviation ± 5 mm/100 m
Operating time up to 34 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range - 10° C to + 50° C
Weight 3.4 kg
Guarantee 24 month
Adjustment possible in the field without having to open the device



 pdf-icon.png pdf-icon.png
User Manual Brochure
